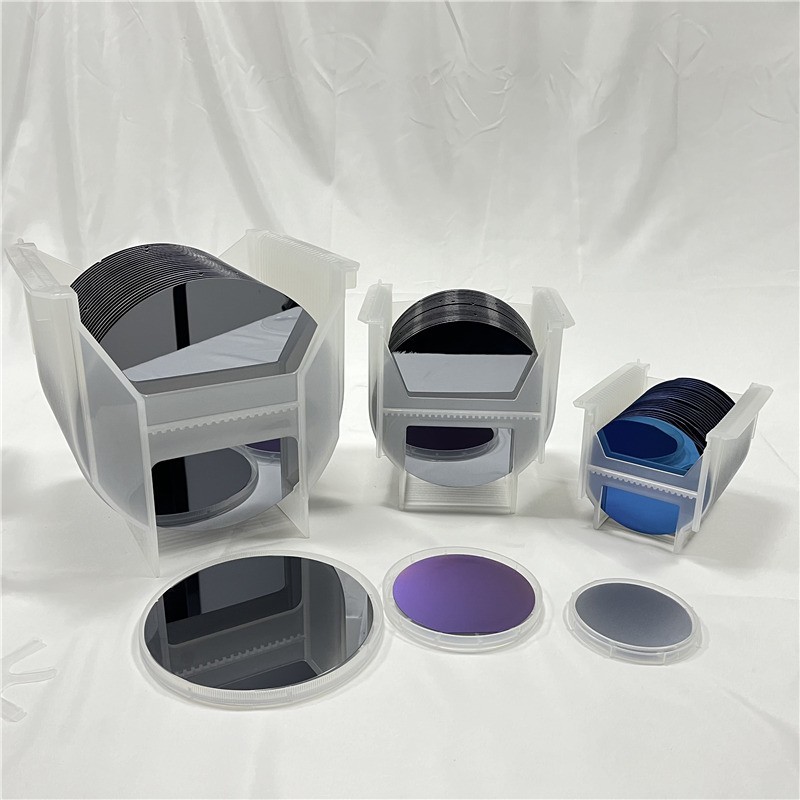

Solar Cell Silicon Substrates

Tuam txhab Taw Qhia

Zhonggui Semiconductor (Yangzhou) Co., Ltd. yog yav tas los Yangzhou Zhongding Photovoltaics, tsim nyob rau hauv 2009. Nrog lub zog technologies reserves thiab innovation los ntawm lub koom haum oftNanoscience ntawm Suav Academy ntawm Sciences, peb lub tuam txhab yog coj mus rau kev koom tes nyob rau hauv kev tsim, ua, thiab technological conventionally ntawm cov neeg muas zaub tam sim no.



A: I-12 nti, thickness 0.Imm-10mm, ib leeg-sab thiab ob chav-sab polished dej, nrog produet qib npog dummy wafers, xeem wafers, thiab prime dej raws li zoo raws li 2-8 nti sllicon wafers ntawm ntau yam tuab tuab wafers;



B: Kev tsim khoom, muag, thiab kev ua cov seod crystais rau hnub ci thiab semicondsingle crystalIetorfurnaces thiab cheeb tsam melting furnace noob muaju. nrog cov qauv suav nrog P-tyne: N-tvpe. crystalorientations 100, Il, 10, ncaj cylinders 17.5mm, 12.5mm, 20 degrees, 30 degrees, 90-degree conicaland customized duab;



C: siliconvindows.silicon targets.lasersputtering lub hom phiaj rau txheej, thiab customized silicon wafers. Lub tuam txhab tau qhia ntau yam ntawm cov khoom siv polishing thiab cov khoom siv kuaj, kom ntseeg tau tias cov khoom zoo thiab cov khoom xa tuaj raws sij hawm, yeej qhuas thiab kev sib raug zoo ntawm kev sib raug zoo los ntawm ntau cov neeg siv khoom hauv tsev thiab thoob ntiaj teb.

Kev Lag Luam Loj



Silicon machined qhov chaw:yog tus nqi siab- ntxiv cov khoom uas tau dhau los ua qhov tseeb machining, laser txiav, lossis sib tsoo thiab polishing.Cov khoom lag luam: silicon spheres, silicon lub hom phiaj, qhov rais wafers, tshwj xeeb - zoo li silicon wafers. Silicon electrodes Crystal orientation tswj:<100>, <111>,<110>los yog polycrystalline Cov khoom siv hluav taws xob: N-hom, P- hom, Insulating (high resistance/insulating)Resistivity: 0.001-10000 ohm.cm



Monocrystalline silicon wafers:yog cov hlais nyias ua los ntawm siab -purity monocrystalline silicon, feem ntau yog siv rau cov khoom siv semiconductor thiab hnub ci hlwb.Crystal orientation:<100><111><110>Txoj kab uas hla: 1-12 nti Conductivity: N- hom, P-hom, Insulating Thickness: 100um-10mmResistivity: 0.001-10000 ohm * cm



slicon oxide wafers:yog tsim los ntawm kev loj hlob ib txheej ntawm silicon dioxide nyias zaj duab xis rau saum npoo ntawm siab -purity ib leeg siv lead ua silicon los ntawm cov txheej txheem thermal oxidation.Lawv muaj cov hluav taws xob zoo heev thiab tshuaj lom neeg ruaj khov, thiab tau siv dav siv innano technology, MEMS ua, thiab daim npog qhov ncauj substrates.Oxide txheej thickness: 5onm-3um (tuaj yeem ua tau raws li qhov yuav tsum tau ua) Cubstrate raws li qhov yuav tsum tau ua.<100>,<111>,<110> Txoj kab uas hla 1-12 nti Conductivity (substrate): N-type, P-type, Intrinsic Resistivity (substrate): 0.001-10000 ohm cm



Quartz iav: muaj qhov zoo ntawm purity siab, kub tsis kam, zoo lub teeb transmittance, thiab muaj zog tshuaj stability, thiab yog dav siv nyob rau hauv kho qhov muag khoom, semiconductor manufacturing, thiab kuaj cov khoom. Qauv: JGS1/JGs2/ZTSQ-01NS-1320/BF33 Txoj kab uas hla: 2 nti.4 nti.6 nti.8 nti.12 nti Thickness: 300m, 500um, 725um, 1000um Surface Quality (S / D): 20/10,60/40,80/50 Daim ntawv thov hom: Substrate / cover iav, Optical qhov rais, Los ntawm - iav ntawm (TGV) txheej txheem





Silicon ingots: yog cov khoom siv raw rau kev ua silicon wafers, Peb muab siab - purity, siab - ntom ntom hwm silicon ingots. Cov ntaub ntawv khoom: Round rods (monocrystalline) lossis square ingots (polycrystalline) Txoj kab uas hla / sab ntev: 1-12 ntiv tes); (monocrystalline) loj square ingots tuaj yeem ua raws li Purity theem: 6N-1IN (hnub ci-qib rau hluav taws xob-qib) Resistivity: 0.001-10000 ohm · cm Lub ntsiab siv: Silicon wafer slicing, semiconductor tivthaiv ua, thiab cov khoom siv nqus tsev vacuum.



Noob crystals: yog cov tseem ceeb 'cov noob' rau rub monocrystalline silicon rods, txiav txim siab siv lead ua orientation kev npaj thiab siv lead ua zoo ntawm tag nrho cov silicon pas nrig.Crystal orientations:<100>, <1l1>, Cov ntaub ntawv thiab cov lus qhia: Cov noob siv lead ua rods, cov noob siv lead ua wafers Kev kho deg: Daim iav polishing, tshuaj etching Lub ntsiab siv: Siv los ua cov noob siv lead ua hauv kev tsim cov monocrystalline silicon los ntawm Czochralski (CZ) los yog floating zone (FZ) txoj kev, kom ntseeg tau qhov sib xws ntawm cov siv lead ua ib leeg.

Khoom Taw Qhia

PebP-Hom Monocrystalline Silicon Wafersfeature superior nto morphology nrogAngstrom{0}}level roughness (Ra), kom ntseeg tau qhov siab tshaj plaws thiab cov txheej txheem kev ruaj ntseg thaum lub sij hawm tseem ceeb lithography, epitaxy, los yog sputtering theem. Tsim los rau siab -kawg R&D thiab cov ntawv thov kev lag luam, peb cov txheej txheem tseem ceeb - suav nrog kev tiv thaiv, TTV, Hneev, thiab Warp- yogtag nrho customizable, muab qhov zoo tshaj plaws substrate platform raws li koj qhov tshwj xeeb architectural xav tau.



Kev ntim khoom

Polished Wafers:Encased nyob rau hauv standardized huv si - chav wafer nkoj thiab ob - kaw nyob rau hauvhigh-cov hnab ntim khoom ntim aluminiumtxhawm rau xyuas kom xoom oxidation thiab pristine, plua plav-dawb nto thaum caij tsheb npav. Rau qis - ntim R&D cov cai, tshwj xeeb ib tus neeg wafer canisters muaj.



Hauv av & 12-nti Wafers:Ruaj ntseg rau hauv cov ncuav mog qab zib muaj zog ntxiv-style canisters lossis hnyav- lub thawv ua npuas dej nrog cov ntawv tiv thaiv zoo li - cov ntawv faib tawm. Qhov ntau- txheej txheej txheej ntim ntim no muab kev tiv thaiv siab tshaj plaws tiv thaiv kev poob siab, ua kom tag nrho cov substrate kev ncaj ncees.



FAQ



Q: Koj puas tuav cov khoom muag hauv zos, thiab koj lub peev xwm ua tiav yog dab tsi?



A:Peb tuav ib qho kev qhiaTshuag ntawm cov khoom txheemrau kev xa tawm tam sim. Rau cov kev xav tau tshwj xeeb los yog cov tuab tuab, thov sab laj nrog peb pab pawg muag khoom kom paub tseeb - lub sijhawm cov khoom lag luam.



Q: Yuav ua li cas tswj kev sib txuas lus barrier rau kev lag luam thoob ntiaj teb?



A:Peb cov engineers muag khoom yogpaub lus Askiv zoothiab zoo-versed nyob rau hauv semiconductor nomenclature, kom ntseeg tau meej kev sib raug zoo ntawm complex technical requirements.



Q: Koj qhov kev sib tw tseem ceeb hauv kev lag luam thoob ntiaj teb yog dab tsi?



A: Chaw tsim tshuaj paus - ncaj qha kev txawj ntse.Raws li cov chaw tsim khoom tseem ceeb, peb muab tus nqi siab - kev ua tau zoo los ntawm kev tshem tawm cov neeg nruab nrab. Peb lub peev xwm los ua qhov nyuaj, me me -batch customization rau ntiaj teb- chav kuaj thiab cov kab tsav ua rau peb sib cais ua tus khub hloov tau yooj yim thiab txhim khu kev qha.
